China Supplier10mm Airdac Sne Cable with Pilot Cores Concentric Cable
Henan Hongda Cable Co., Ltd.- Type：Insulated
- Conductor Type：Solid
- Application：Overhead, Heating
- Conductor Material：Aluminum
- Sheath Material：PVC,PE,XLPE
- Insulation Material：XLPE
Base Info
- Model NO.：10mm Airdac SNE Cable with Pilot Cores Concentric
- Material Shape：Round Wire
- Range of Application：LSOH
- Certification：ISO9001, CE, CCC, RoHS, VDE
- Brand：Hongda
- Product Description：China Supplier10mm Airdac Sne Cable with Pilot Cor
- Key Word：China Supplier10mm Airdac Sne Cable with Pilot Cor
- Product Type：Concentric Cables
- Transport Package：Wooden Drum
- Specification：Single Core Aluminum Concentric Cable 16mm
- Trademark：hongda cable
- Origin：Henan China
- HS Code：8544200000
- Production Capacity：500000
Description
Basic Info.
Model NO. 10mm Airdac SNE Cable with Pilot Cores Concentric Material Shape Round Wire Range of Application LSOH Certification ISO9001, CE, CCC, RoHS, VDE Brand Hongda Product Description China Supplier10mm Airdac Sne Cable with Pilot Cor Key Word China Supplier10mm Airdac Sne Cable with Pilot Cor Product Type Concentric Cables Transport Package Wooden Drum Specification Single Core Aluminum Concentric Cable 16mm Trademark hongda cable Origin Henan China HS Code 8544200000 Production Capacity 500000Product Description

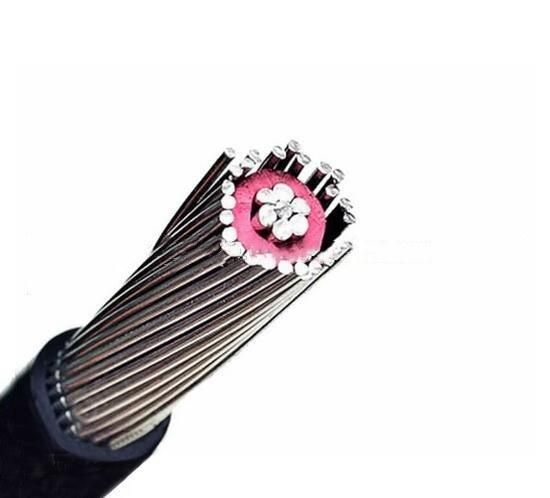

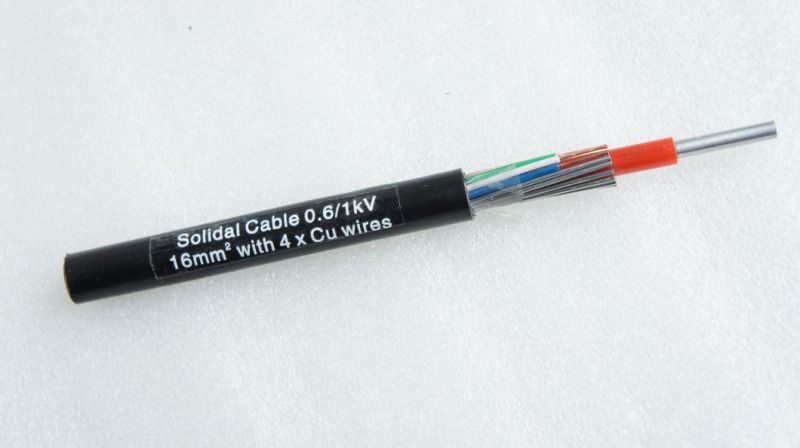

China supplier10mm Airdac SNE Cable with Pilot Cores Concentric Cable Tags: Copper Concentric BS 7870 PVC Cable, Aluminum Concentric BS 7870 PVC Cable, Power, PVC.

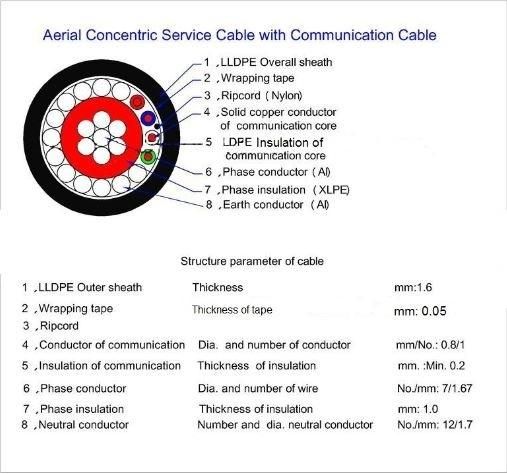

1.Phase conductor:Solidal 16sqm aluminum wire (diameter 4.50mm)
2.Insulation :XLPE (nominal thickness :1.0mm,color :red)
3.Pilot core plain annealed copper wire 0.5sqm(diameter 0.8mm )
4.Pilot core insulation diameter min 1.13(the actual approximation :1.7mm) LLDPE
5.Neutral conductor :solidal aluminum wire (12/1.31)
6.Binder tape :non-hygroscopic tape
7.Ripcord
8.Sheathed:LLDPE (nominal thickness :1.6mm, color black )
Hongda Cables supplies a comprehensive range of concentric and split concentric cables manufactured in accordance with standard BS7870. These aluminium and copper cables are UK Power Network (UKPN) approved and are devised for use by Distribution Network Operators (DNOs) to provide the final connection to residential properties. Additional functionality includes use for sub-main distribution and within high-rise buildings and street lighting systems.
The choice between Concentric and Split Concentric cable is determined by the supply type: TN-C-S supply for Concentric and TN-S supply for Split Concentric. These are LSZH cables (low smoke zero halogen) with the outersheath suitable for installations requiring a reduction to the risk to human life or sensitive equipment in the event of fire
