• Model NO.：Airdac CNE Cable 10mm2 16mm2 25mm2 UV Resistance C
• Material Shape：Round Wire
• Range of Application：LSOH
• Certification：ISO9001, CE, CCC, RoHS, VDE
• Brand：Hongda
• Product Description：Airdac Cne Cable 10mm2 16mm2 25mm2 UV Resistance C
• Key Word：XLPE Concentric Cable 16mm
• Product Type：Concentric Cables

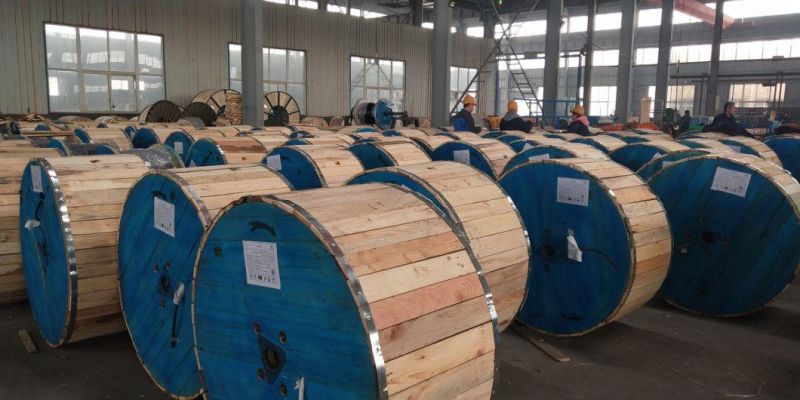

• Transport Package：Wooden Drum
• Specification：Airdac CNE Cable 10mm2 16mm2 25mm2 UV Resistance C
• Trademark：hongda cable
• Origin：Henan China
• HS Code：8544200000
• Production Capacity：500000

Basic Info.

Model NO. Airdac CNE Cable 10mm2 16mm2 25mm2 UV Resistance C Material Shape Round Wire Range of Application LSOH Certification ISO9001, CE, CCC, RoHS, VDE Brand Hongda Product Description Airdac Cne Cable 10mm2 16mm2 25mm2 UV Resistance C Key Word XLPE Concentric Cable 16mm Product Type Concentric Cables Transport Package Wooden Drum Specification Airdac CNE Cable 10mm2 16mm2 25mm2 UV Resistance C Trademark hongda cable Origin Henan China HS Code 8544200000 Production Capacity 500000

Product Description

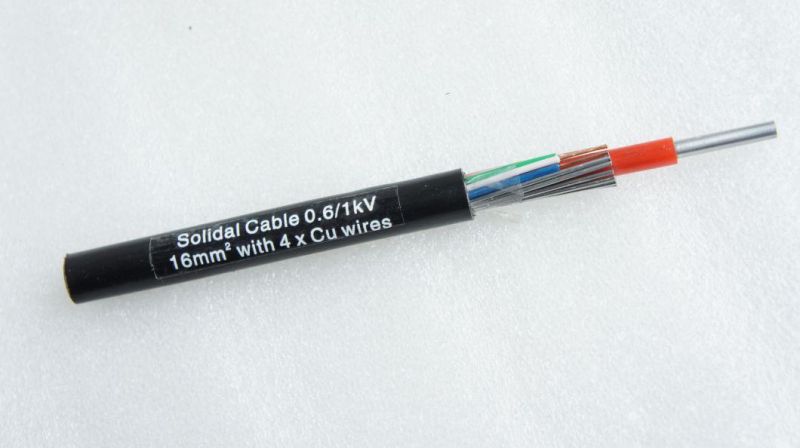

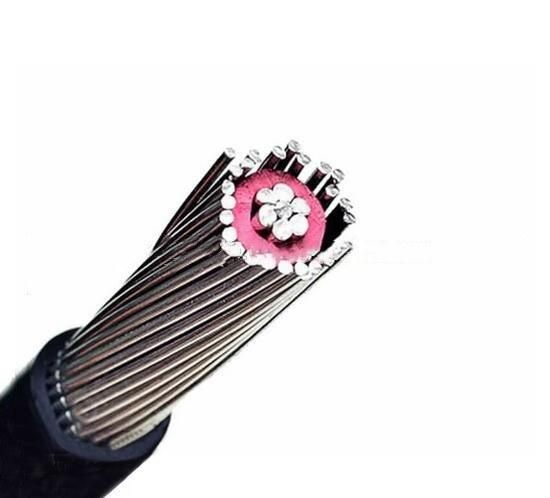

Airdac CNE Cable 10mm2 16mm2 25mm2 UV Resistance Concentric Cables

Tags: Copper Concentric BS 7870 PVC Cable, Aluminum Concentric BS 7870 PVC Cable, Power, PVC.

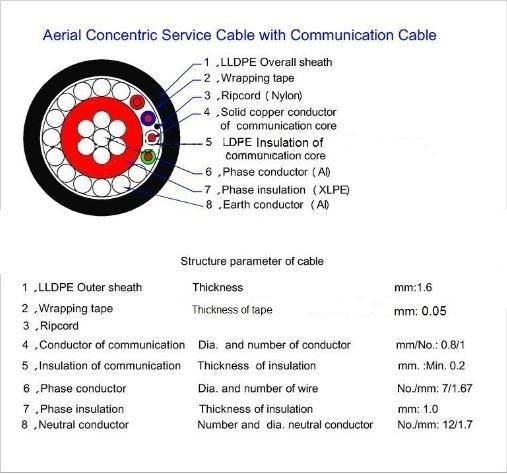

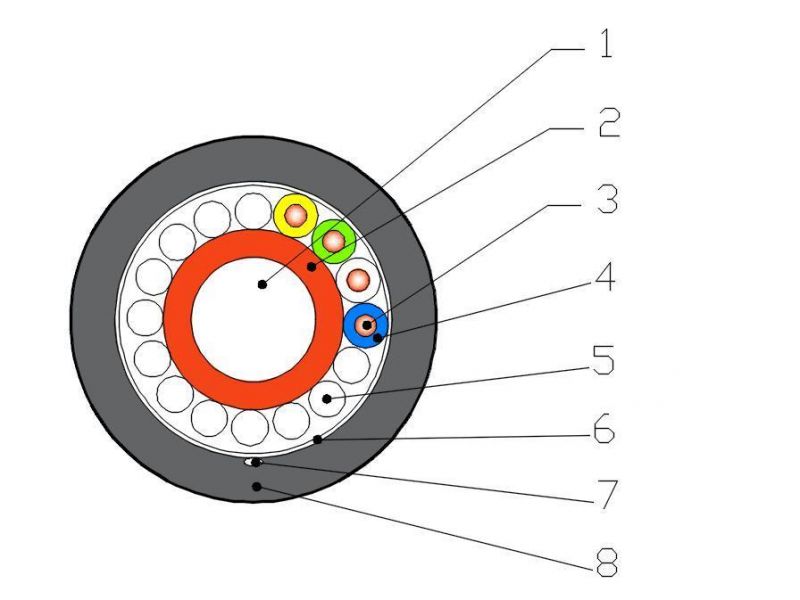

1.Phase conductor:Solidal  16sqm aluminum wire (diameter 4.50mm)
2.Insulation :XLPE (nominal thickness :1.0mm,color :red)
3.Pilot core plain annealed copper wire 0.5sqm(diameter 0.8mm )
4.Pilot core insulation diameter min 1.13(the actual approximation :1.7mm) LLDPE
5.Neutral conductor :solidal aluminum wire (12/1.31)
6.Binder tape :non-hygroscopic tape
7.Ripcord
8.Sheathed:LLDPE (nominal thickness :1.6mm, color black  )





Hongda Cables supplies a comprehensive range of concentric and split concentric cables manufactured in accordance with standard BS7870. These aluminium and copper cables are UK Power Network (UKPN) approved and are devised for use by Distribution Network Operators (DNOs) to provide the final connection to residential properties. Additional functionality includes use for sub-main distribution and within high-rise buildings and street lighting systems.

The choice between Concentric and Split Concentric cable is determined by the supply type: TN-C-S supply for Concentric and TN-S supply for Split Concentric. These are LSZH cables (low smoke zero halogen) with the outersheath suitable for installations requiring a reduction to the risk to human life or sensitive equipment in the event of fire
