Cable Aerial Bundle Fr-N1xd9-Ar NFC 33 209 with Carrier 70mm2 Phase 70~150mm2
YIFANG ELECTRIC GROUP INC.- Application：Construction, Overhead, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：N,a
- Material Shape：Round Wire
Base Info
- Model NO.：FR-N1XD9-AR
- Wire Core Material：Aluminum
- Certification：ISO, CCC, CE, RoHS
- Model：Jklyj
- Brand：Yifang
- Product Name：Cable Aerial Bundle Fr-N1xd9-Ar NFC 33 209
- Transport Package：Drum or Under Clients′ Request
- Specification：16 ~ 25mm2
- Trademark：Yifang
- Origin：Zhengzhou, China
- HS Code：8544492100
- Production Capacity：1000km,Month
Description
Basic Info.
Model NO. FR-N1XD9-AR Wire Core Material Aluminum Certification ISO, CCC, CE, RoHS Model Jklyj Brand Yifang Product Name Cable Aerial Bundle Fr-N1xd9-Ar NFC 33 209 Transport Package Drum or Under Clients′ Request Specification 16 ~ 25mm2 Trademark Yifang Origin Zhengzhou, China HS Code 8544492100 Production Capacity 1000km/MonthProduct Description
Product Details
Cable Aerial Bundle NFC 33 209 with Carrier 70mm2
The insulated neutral carrier network twist NF C 33-209 is intended for rural and public low voltage supply.
It also has the following properties:
resistance to ultraviolet radiation;
ozone resistance;
high dielectric strength;
lightness and maneuverability.
POSE:
The requirements of standard NF C 11-201 determine the installation criteria for low-voltage overhead lines.
Their laying in the ground, even under conduit is PROHIBITED.
DESCRIPTION:
The torsade comprises an insulated aluminum core crosslinked polyethylene, it has a very good behavior over time and at high temperature.
Product Introduction
CARRIER CHARACTERISTICS:
Core: AGS Aluminum Alloy Wired Circular
insulation: black crosslinked polyethylene
nominal section: 54.6 mm²
diameter on the core: 9.2 to 9.6 mm
diameter on insulation: 12.3 mm min, 13.0 max
minimum breaking load: 1660 daN
modulus of elasticity: 62000 MPa
linear expansion coefficient: 23 * 10-6 ° C-1
MARKING:
Neutral:
Manufacturer Name Cable Size Voltage NF C 33-209, "metric marking" in ink, Year, etc..
Phase 1, 2, 3:
the number of the phase is printed and marked on the insulation
ELECTRICAL SPECIFICATIONS :
Test voltage: 4 kV AC,
Shock resistance: 1.2 / 50 μs of positive or negative polarity with a peak value of 20 kV.
Product Parameters
| Size | Twist Dia.(mm) | Tension(daN) | Standard Length(m) |
| 3x150+70+16 | 43.0 | 2050 | 500 |
| 3x150+70+2x16 | 44.0 | 2050 | 500 |
| 3x150+70+3x16 | 44.0 | 2050 | 500 |
| 3x150+70 | 43.0 | 2050 | 500 |
| 3x70+70+16 | 34.0 | 2050 | 500 |
| 3x70+70+2x16 | 36.0 | 2050 | 500 |
| 3x70+70+3x16 | 36.0 | 2050 | 500 |
| 3x70+70 | 33.0 | 2050 | 500 |

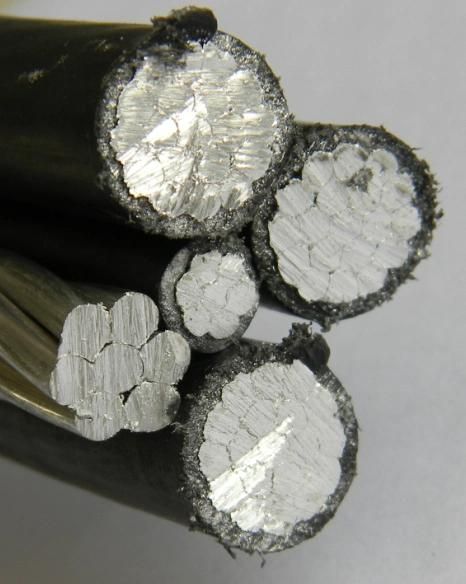

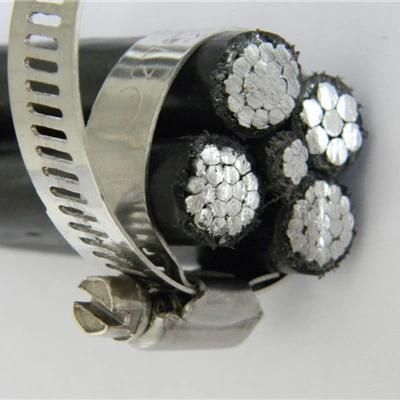

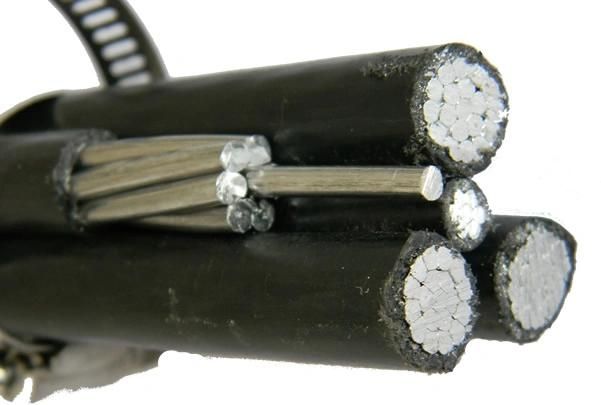

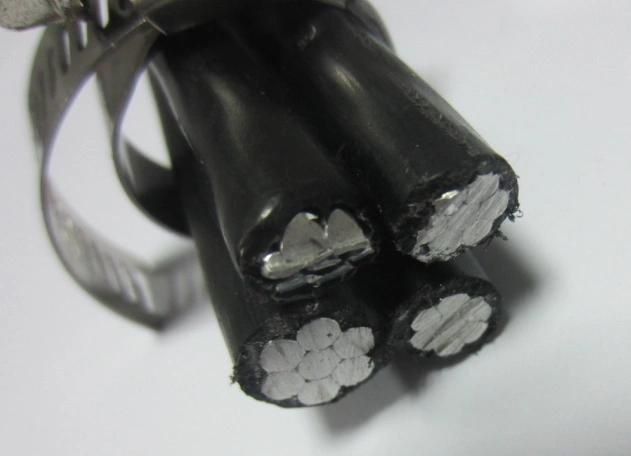

Product Details Show
