Solid Aluminum Cable with Pilot Core Concentric Service Entrance Cable Ks 04-1022
Henan Hongda Cable Co., Ltd.- Application：Construction, Overhead, Underground
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：YJLV72
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC
- Model：YJV
- Brand：OEM,Hongda
- Color：as Your Need
- Transport Package：in Drum or in Coil
- Specification：16
- Trademark：OEM
- Origin：Henan
- HS Code：8544492100
- Production Capacity：10000 M Per Day
Description
max.d.c. CONDUCTOR
RESISTANCE PER 1000 m OF CABLEAT 20 ºCNominal area Number and
approximate
diameter of wires Thicknesof insulation Phase Neutral mm2 mm mm mm min
mm max
mm mm mm WΩ WΩ 4 7/0.85 1.55 24/0.85 59 118 1.4 9.75 4.61 1.343 6 7/1.04 1.55 26/0.85 63 127 1.4 10.72 3.08 1.240 10 7/1.35 1.55 29/0.85 71 142 1.4 11.73 1.83 1.151 16 7/1.70 1.55 26/1.13 84 167 1.4 12.78 1.15 1.007 4 25 7/2.14 1.60 29/1.13 95 190 1.5 14.88 0.727 0.629 35 19/1.53 1.65 28/1.35 109 218 1.6 16.75 0.524 0.473

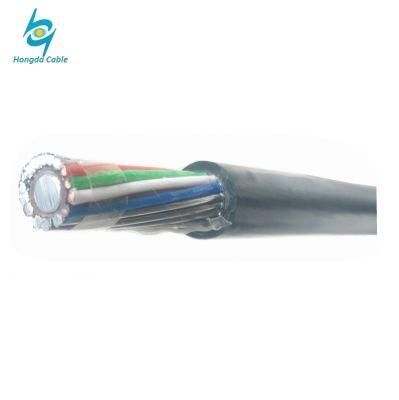

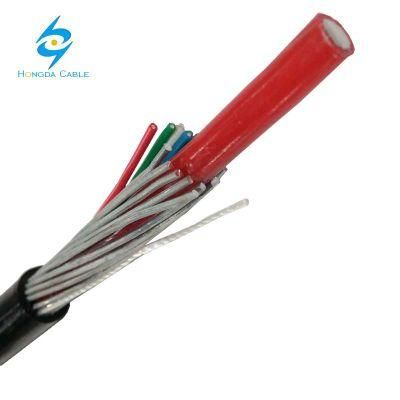

1.Phase conductor:Solidal 16sqm aluminum wire (diameter 4.50mm)
2.Insulation :XLPE (nominal thickness :1.0mm,color :red)
3.Pilot core plain annealed copper wire 0.5sqm(diameter 0.8mm )
4.Pilot core insulation diameter min 1.13(the actual approximation :1.7mm) LLDPE
5.Neutral conductor :solidal aluminum wire (12/1.31)
6.Binder tape :non-hygroscopic tape
7.Ripcord
8.Sheathed:LLDPE (nominal thickness :1.6mm, color black )
RESISTANCE PER 1000 m OF CABLEAT 20 ºC
approximate
diameter of wires
mm
mm
| ITEM | SPECIFICATION (PARTICULARS | UNIT | Data |
| 1 | Insulation Voltage | V | 600/1000 |
| 2 | Conductor size | mm² | 16 |
| 3 | Phase Conductor material | N/A | Hard drawn Aluminium conductor -Single core |
| 4 | Insulation Material | N/A | XLPE |
| 5 | Earth wire material type | N/A | Bare Aluminium conductor |
| 6 | Rip Chord | N/A | Nylon |
| 7 | Reference Standards | N/A | SANS 1507, NRS 063, IEC 60502/228 ESI 09-7 |
| 8 | Phase conductor Insulation thickness | mm | 1.0 |
| Construction (Phase conductor) | |||
| 9 | Structure | mm | Single core |
| 10 | Insulation Thickness | mm | 1.0 |
| 11 | Reference Insulation O.D | mm | 7.1 |
| Construction (Earth Wire) | |||
| 12 | Structure | Numbers | 12 |
| 13 | Wire structure | N/A | 12/1.7 |
| Construction (Pilot/Communication Wires) | |||
| 14 | Structure | mm² | 4X0.5 |
| 15 | Reference Insulation O.D | mm | 1.13 |
| 16 | Conductor material | N/A | Copper |
| 17 | Insulation Material | N/A | LLPDE/XLPE |
| 18 | Number of conductors | Numbers | 4 |
| Construction (Sheath) | |||
| 19 | Nominal Thickness | mm | 1.6 |
| 20 | Reference Insulation O.D | mm | 14.5 |
| 21 | Sheath Material | N/A | LLPE Black UV stable/HQ PVC |
| Insulation material colours | |||
| 22 | Phase conductor | N/A | Red |
| 23 | Pilot wires (04) | N/A | Red, Green, White, Blue |
| 24 | Sheath | N/A | Black |
| Performance (Electrical Characteristics) | |||
| 25 | Phase Conductor - Maximum resistance at | ≤1.91 | |
| 26 | Earth Wires - - Maximum resistance at | ≤7.40 | |
| 27 | Pilot Wires - Maximum resistance at 20 | ≤36 |
1.Phase conductor:Solidal 16sqm aluminum wire (diameter 4.50mm)
2.Insulation :XLPE (nominal thickness :1.0mm,color :red)
3.Pilot core plain annealed copper wire 0.5sqm(diameter 0.8mm )
4.Pilot core insulation diameter min 1.13(the actual approximation :1.7mm) LLDPE
5.Neutral conductor :solidal aluminum wire (12/1.31)
6.Binder tape :non-hygroscopic tape
7.Ripcord
8.Sheathed:LLDPE (nominal thickness :1.6mm, color black )
