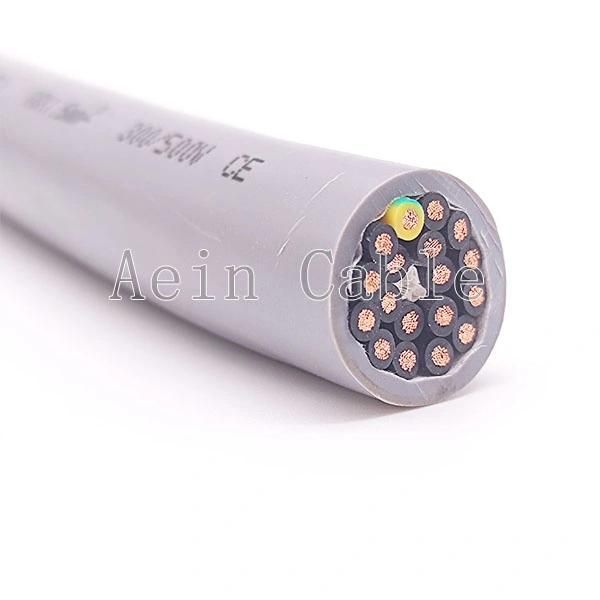

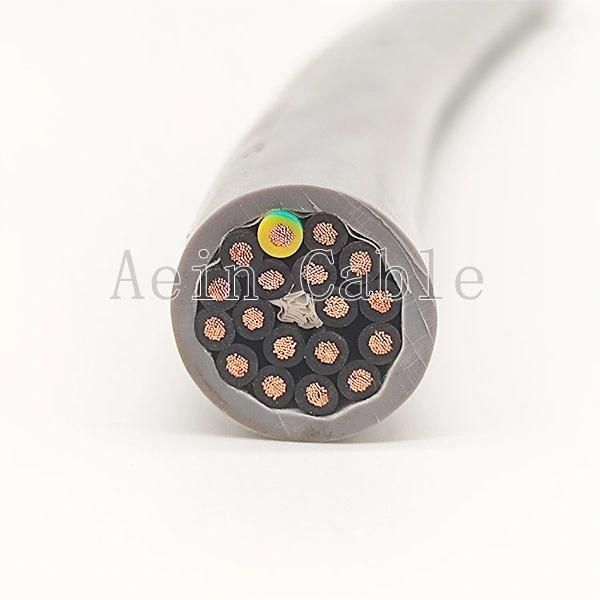

Low Voltage 300/500V Opvc-Jz/Oz Cable Acids Resistant PVC Insulated Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Electrical Facilities
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：OPVC-JZ,OZ Cable
  • Material Shape：Round Wire
  • Range of Application：Acids Resistant
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemLow Voltage 300/500V OPVC-JZ/OZ Cable ConductorBare copper strandInsulationPVCOuter sheathPVCCore NumberMulticores (As client's requirement)Rated VoltageUo/U: 300/500VTest Voltage4000 VTemperature RangeFixed min/max -40 °C / +80 °C
Moved min/max -15 °C / +70 °CBending RadiusFixed 4 x d
Moved 15 x dColorOptionalSpecial Features• Largely resistant to acids, bases and specified types of oil
• 4 kV testing voltageApplicationPower, control and connecting cable in electrical facilities for fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use only with UV-protection, no laying underground.
