• Model NO.：FTP CAT6
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, ETL SGS CPR
• Brand：Risun or OEM
• Insulation：HDPE
• Filler：Yes
• Shield：Al,Pet Foil
• Drain：Tc
• UV, Jelly, Fr：Available
• Transport Package：305m,Pull Box, 2boxes,CTN.
• Specification：ETL, CE, RoHS, SGS, ISO9001
• Trademark：RISUN or OEM
• Origin：Hangzhou, Zhejiang, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes , Month

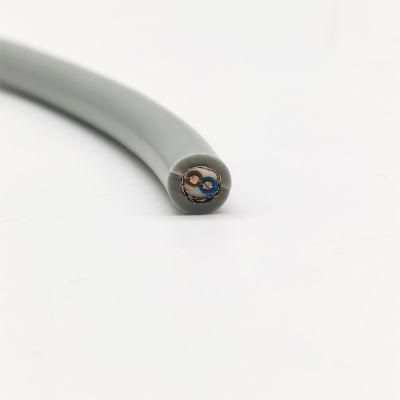

Cable ConstructionConductorSolid Bare Copper 23AWGInsulation1.1+/-0.05mmHDPECores / Pairs8/4FillerPlastic fillerDrain Wire26AWG Tinned CopperShieldPolyester Tape/ Al FoilOuter Jacket7.30mm+/-0.1mm PVC,PE,LSOH.OptionsJelly Compound, Jacket: UV, FR, RoHS complied

Mechanical Properties
Elongation	Min. 300%
Temperature Range	-20 up to +75° C
Tensile strength	Min. 1.68Kg/mm2



Electrical Properties (at 20°C)
Conductor Resistance	Max. 9.38 ohm/100m
Resistance Unbalance	Max. 2%
Insulation Resistance	150 ohm/KM
Mutual Capacitance	Max. 5600pF/100m
Capacitance Unbalance	Max. 330pF/100m
Impedance	100+/-15 ohm
Spark Test	2000V
Velocity Propagation	67%



Attenuation	RL	Next	PS Next
(MHz)	(db/100m)	(dB)	(dB)	(db/100m)
1MHz	2.0	23	74.3	71.8
4MHz	3.8	23	65.3	61.2
10MHz	6	23	59.3	53
16MHz	7.6	23	56.2	48.4
20MHz	8.5	23	54.8	46.5
31.2MHz	10.7	23	51.9	41.3
62.5MHz	15.1	23	47.4	31.5
100MHz	19.1	23	44.3	24.1
125MHz	21.3	21	42.8	20.5
155.5MHz	23.8	21	41.4	16.6
175MHz	25.3	21	40.7	13.9
200MHz	27	21	39.8	10.8
250MHz	32.6	19	38.3	5
300MHz	35.7		37.1	27.0
400MHz	41.2		35.3	25.6
450MHz	42		34.5
