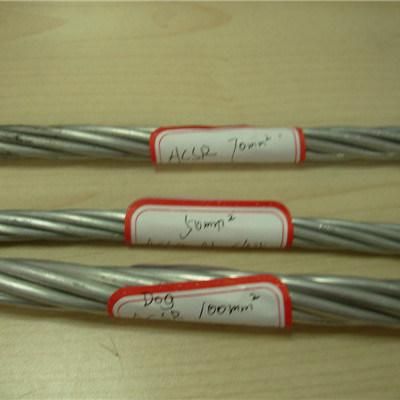

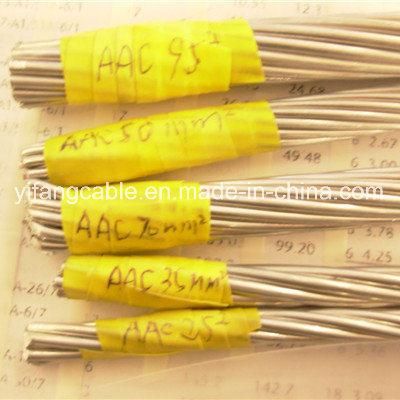

Factory Price AAC AAAC ACSR Conductor
YIFANG ELECTRIC GROUP INC.- Application：Overhead
- Material Shape：Round Wire
- Wire Core Material：AAC AAAC ACSR
- Certification：ISO, CCC, CE
- Brand：Yifang
- Transport Package：Standard Export Wooden Drum
Base Info
- Model NO.：AAC AAAC ACSR BL16
- Trademark：Yifang
- Origin：China
- HS Code：7614900000
- Production Capacity：1000 Kilometers,Month
Description
Aluminum Conductors Steel Reinforced ASTM B 232Code name Area Stranding and wire diameter Approx. overall diameter Weight Nominal breaking load Nominal DC resistance at 20 deg. Nominal Alum. Steel Total Alum. Steel Alum. Steel Total AWG or MCM mm2 mm2 mm2 mm mm mm kg/km kg/km kg/km kN Ohm/km TURKEY 6 13.29 2.19 15.48 6/1.68 1/1.68 5.04 37 17 54 5.24 2.1586 SWAN 4 21.16 3.55 24.71 6/2.12 1/2.12 6.36 58 27 85 8.32 1.3557 SWANATE 4 21.16 5.35 26.51 7/1.96 1/2.61 6.53 58 42 100 10.53 1.3557 SPARROW 2 33.61 5.61 39.22 6/2.67 1/2.67 8.01 92 44 136 12.7 0.8535 SPARATE 2 33.61 8.52 42.13 7/2.47 1/3.30 8.24 92 67 159 16.11 0.8535 RAVEN 1/0 53.48 8.9 62.38 6/3.37 1/3.37 10.11 147 69 216 19.32 0.5364 QUAIL 2/0 67.42 11.23 78.65 6/3.78 1/3.78 11.34 185 88 273 23.62 0.4255 PIGEON 3/0 85.03 14.19 99.22 6/4.25 1/4.25 12.75 233 110 343 29.41 0.3373 PENGUIN 4/0 107.23 17.87 125.1 6/4.77 1/4.77 14.31 294 139 433 37.06 0.2675 PARTRIDGE 266.8 135.16 22 157.16 26/2.57 7/2.00 16.28 374 172 546 50.29 0.2143 MERLIN 336.4 170.45 9.48 179.93 18/3.47 1/3.47 17.35 470 74 544 38.23 0.1691 LINNET 336.4 170.45 27.81 198.26 26/2.89 7/2.25 18.31 472 217 689 62.71 0.1699 ORIOLE 336.4 170.45 39.81 210.26 30/2.69 7/2.69 18.83 473 311 784 77.27 0.1704 IBIS 397.5 201.42 32.77 234.19 26/3.14 7/2.44 19.88 558 256 814 72.11 0.1438 LARK 397.5 201.42 46.97 248.39 30/2.92 7/2.92 20.44 560 367 927 88.69 0.1442 PELICAN 477 241.68 13.42 255.10 18/4.14 1/4.14 20.70 666 105 771 52.16 0.1193 FLICKER 477 241.68 31.29 272.97 24/3.58 7/2.39 21.49 670 245 915 76.66 0.1199 HAWK 477 241.68 39.42 281.10 26/3.44 7/2.67 21.79 670 308 978 86.65 0.1199 HEN 477 241.68 56.39 298.07 30/3.20 7/3.20 22.40 671 441 1112 105.34 0.1201 OSPREY 556.5 282.00 15.68 297.68 18/4.47 1/4.47 22.35 777 122 899 60.88 0.1022 PARAKEET 556.5 282.00 36.58 318.58 24/3.87 7/2.58 23.22 781 286 1067 88.22 0.1027 DOVE 556.5 282.00 45.94 327.94 26/3.72 7/2.89 23.55 781 359 1140 101.03 0.1027 EAGLE 556.5 282.00 65.81 347.81 30/3.46 7/3.46 24.21 783 515 1298 122.92 0.103 PEACOCK 605 306.58 39.74 346.32 24/4.03 7/2.69 24.20 849 311 1160 95.88 0.0945 SQUAB 605 306.58 49.94 356.52 26/3.87 7/3.01 24.51 850 390 1240 108.14 0.0945 TEAL 605 306.58 69.87 376.45 30/3.61 19/2.16 25.24 851 548 1399 133.59 0.0947 GROSBEAK 636 322.26 52.45 374.71 26/3.97 7/3.09 25.15 893 409 1302 111.8 0.08989 STARLING 715.5 362.58 59.03 421.61 26/4.21 7/3.28 26.68 1005 461 1466 125.91 0.07989 TERN 795 402.84 27.87 430.71 45/3.38 7/2.25 27.03 1116 217 1333 97.37 0.07191 CONDOR 795 402.84 52.19 455.03 54/3.08 7/3.08 27.72 1116 408 1524 124.45 0.07191 CUCKOO 795 402.84 52.19 455.03 24/4.62 7/3.08 27.74 1116 408 1524 123.94 0.07191 DRAKE 795 402.84 65.61 468.35 26/4.44 7/3.45 28.11 1116 512 1628 139.92 0.07191 MALLARD 795 402.84 91.87 494.71 30/4.14 19/2.48 28.96 1119 719 1838 171.18 0.07208 RAIL 954 483.42 33.42 516.84 45/3.70 7/2.47 29.61 1339 262 1601 115.63 0.05992 CURLEW 1033.5 523.68 67.87 591.55 54/3.52 7/3.52 31.68 1451 530 1981 161.8 0.05531 BLUEJAY 1113 563.93 39.03 602.96 45/4.00 7/2.66 31.98 1563 305 1868 132.63 0.05136 FINCH 1113 563.93 71.55 635.48 54/3.65 19/2.19 32.85 1570 560 2150 174.41 0.05161
AAAC (All Aluminum Alloy Conductor)
Applications:
AAAC aluminum alloy conductors are extensively used for overhead distribution and transmission lines adjacent to ocean
coastlines where there can be a problem of corrosion in the steel of an ACSR construction. The aluminum alloy conductors
are used in place of single-layer ACSR conductors (i.e., #6 to #4/0 AWG) to reduce power losses in overhead distribution and transmission lines.
The inductive effect of the ACSR's steel core is eliminated, hence increasing the operating efficiency of the line.
Construction:
Standard 6201-T81 high strength aluminum conductors, conforming to ASTM Specification B-399, are concentric-lay-stranded, similar in construction and appearance to 1350 grade aluminum conductors. Standard 6201 alloy conductors are
similar to other alloy conductors commercially known as Ardival, Aldrey or Almelec. They were developed to fill the need for
an economical conductor for overhead applications requiring higher strength than that obtainable with 1350 grade aluminum
conductors, but without a steel core.
Code NumberStranding&wire diameter Approx Overall diameter Nominal Approx. Breaking Load DC Resistance at 20 area Weight mm mm mm 2 Kg/km KN Ohm/km 16 7/1.83 5.49 18.4 50.4 5.43 1.7896 25 7/2.29 6.86 28.8 78.7 8.49 1.1453 40 7/2.89 8.68 46 125.9 13.58 0.7158 63 7/3.63 10.9 72.5 198.3 21.39 0.4545 100 19/2.78 13.9 115 316.3 33.95 0.2877 125 19/3.10 15.5 144 395.4 42.44 0.2302 160 19/3.51 17.6 184 506.1 54.32 0.1798 200 19/3.93 19.6 230 632.7 67.91 0.1439 250 19/4.39 22 288 790.8 84.88 0.1151 315 37/3.53 24.7 363 998.9 106.95 0.0916 400 37/3.98 27.9 460 1268.4 135.81 0.0721 450 37/4.22 29.6 518 1426.9 152.79 0.0641 500 37/4.45 31.2 575 1585.5 169.76 0.0577 560 61/3.67 33 645 1778.4 190.14 0.0516 630 61/3.89 35 725 2000.7 213.9 0.0458 710 61/4.13 37.2 817 2254.8 241.07 0.0407 800 61/4.38 39.5 921 2540.6 271.62 0.0361 900 91/3.81 41.8 1036 2861.1 305.58 0.0321 1000 91/4.01 44.1 1151 3179 339.53 0.0289 1120 91/4.25 46.7 1289 3560.5 380.27 0.0258 1250 91/4.49 49.4 1439 3973.7 424.41 0.0231
AAAC (All Aluminum Alloy Conductor)
Applications:
AAAC aluminum alloy conductors are extensively used for overhead distribution and transmission lines adjacent to ocean
coastlines where there can be a problem of corrosion in the steel of an ACSR construction. The aluminum alloy conductors
are used in place of single-layer ACSR conductors (i.e., #6 to #4/0 AWG) to reduce power losses in overhead distribution and transmission lines.
The inductive effect of the ACSR's steel core is eliminated, hence increasing the operating efficiency of the line.
Construction:
Standard 6201-T81 high strength aluminum conductors, conforming to ASTM Specification B-399, are concentric-lay-stranded, similar in construction and appearance to 1350 grade aluminum conductors. Standard 6201 alloy conductors are
similar to other alloy conductors commercially known as Ardival, Aldrey or Almelec. They were developed to fill the need for
an economical conductor for overhead applications requiring higher strength than that obtainable with 1350 grade aluminum
conductors, but without a steel core.
Code Number
