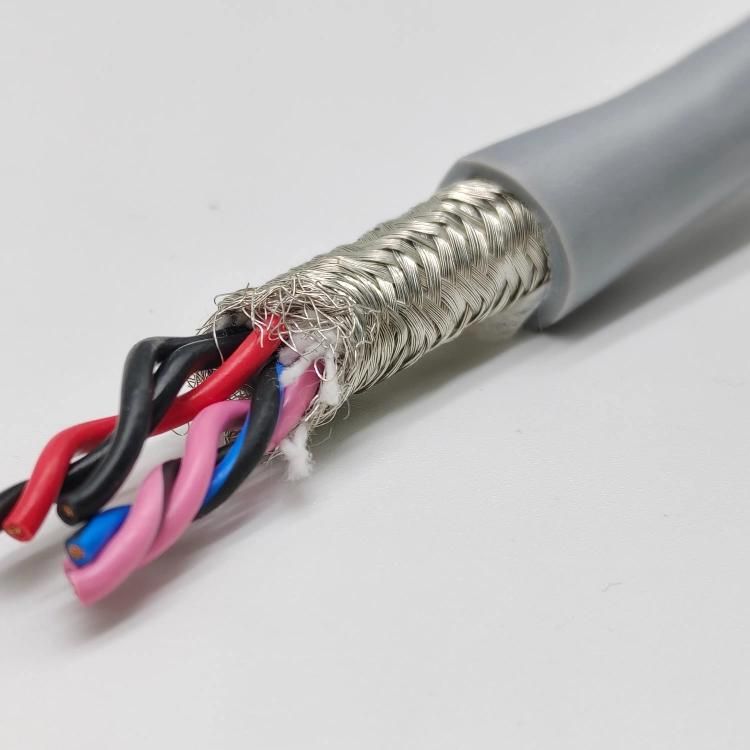

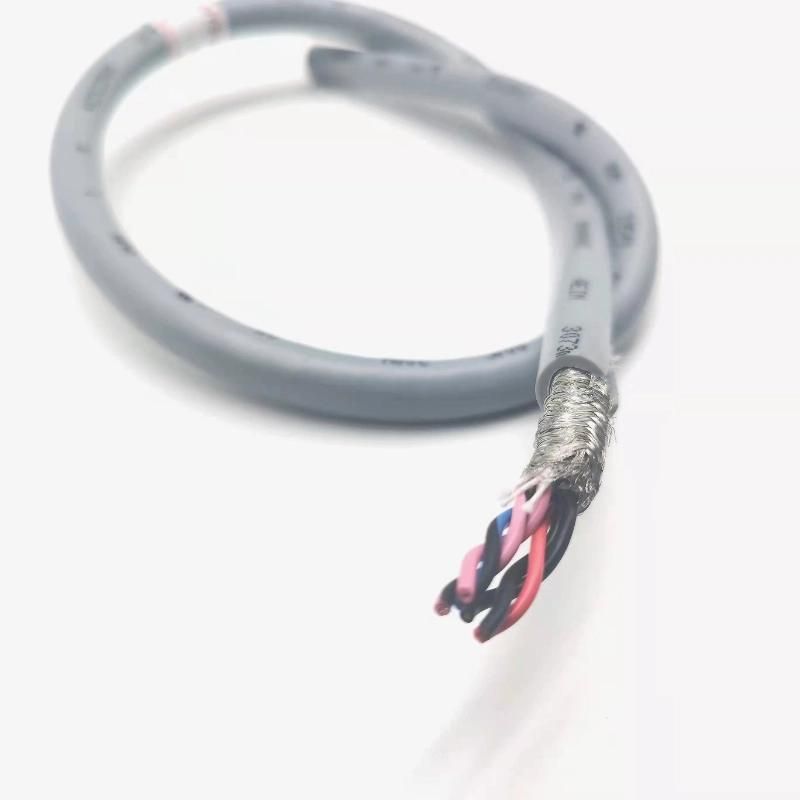

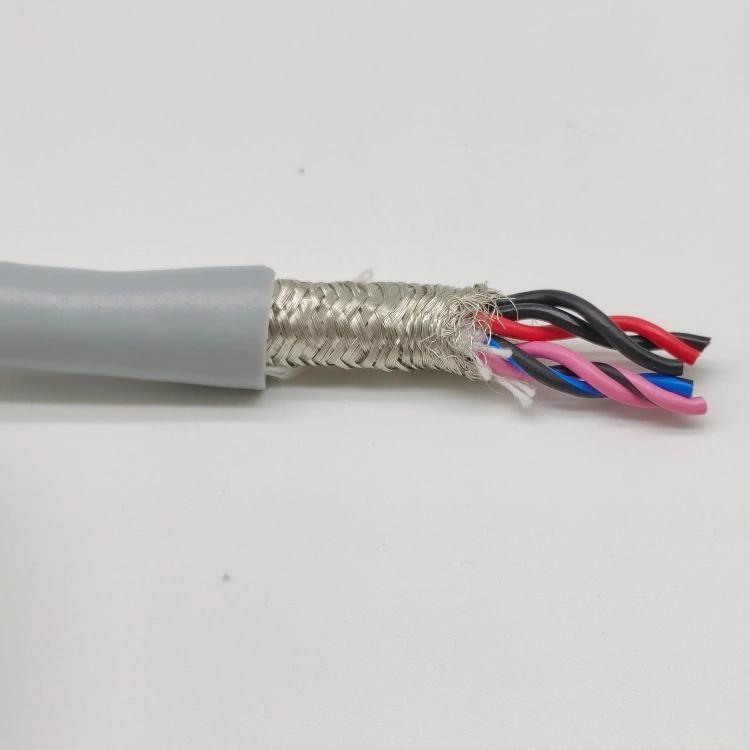

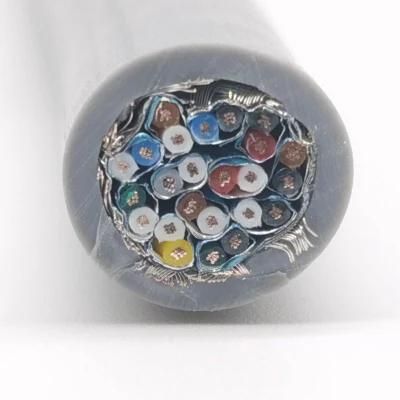

CE Certified Helukable Alternative Paar-Tronic-Li-2ycyv Cable Weather-Resistant

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PE
  • Material Shape：Round Wire

Base Info

  • Model NO.：PAAR-TRONIC-Li-2YCYv Cable
  • Range of Application：Weather-Resistant
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemCE Certified HELUKABLE Alternative PAAR-TRONIC-Li-2YCYv Cable ConductorCopper wire bare, strandedInsulationPEWrappingFoil Screenbraided screen of tinned copper wires, approx. coverage 85%Outer sheathPVCCore NumberMulticores (As client's requirement)Rated VoltageUo/U  250 V Test Voltagecore/screen 1000 V
core/core 2000 VTemperature RangeFixed min/max -30 °C / +80 °C
Moved min/max -5 °C / +70 °CBending RadiusFixed 7.5 x d
Moved 12 x dColorOptionalSpecial Featuresresistant to: UV radiation, weathering effects
for outdoor use
direct burial
the materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquersCertificationCEApplicationPE-insulated data cable with twisted pairs, for interference-free transmission of data and signals over longer distances. The twisted-pair lay-up prevents electrical unbalances within the cable and this thus effectively suppresses cross-talking effects. The high transmission rates are particularly suitable for RS 422 and RS 485 interfaces; suitable for fixed installations in dry, damp and wet rooms, as well as outdoors and direct burial. EMC= Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and all-round large contact area of the copper braiding.
