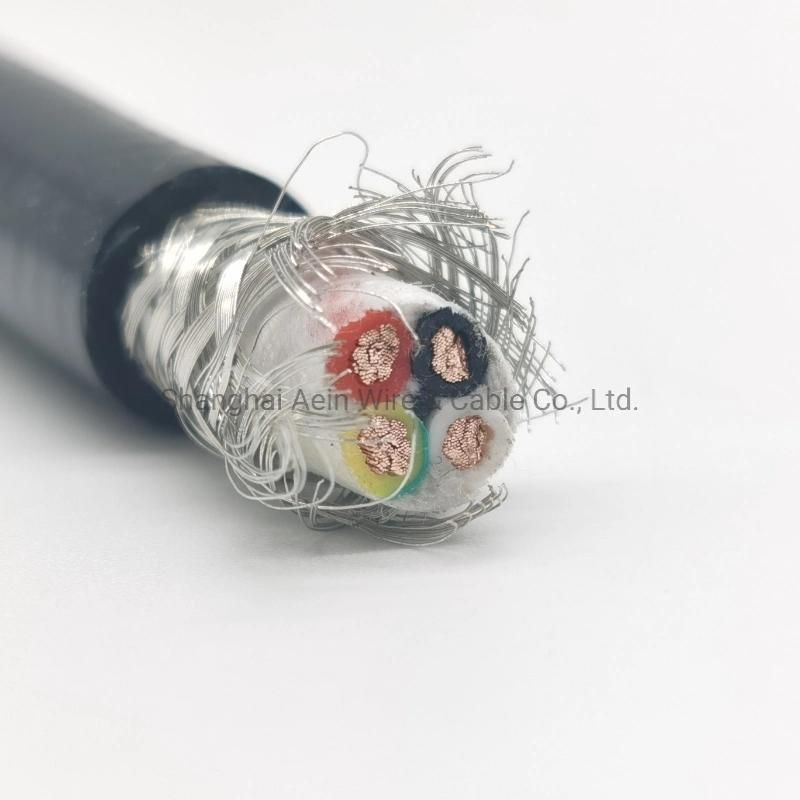

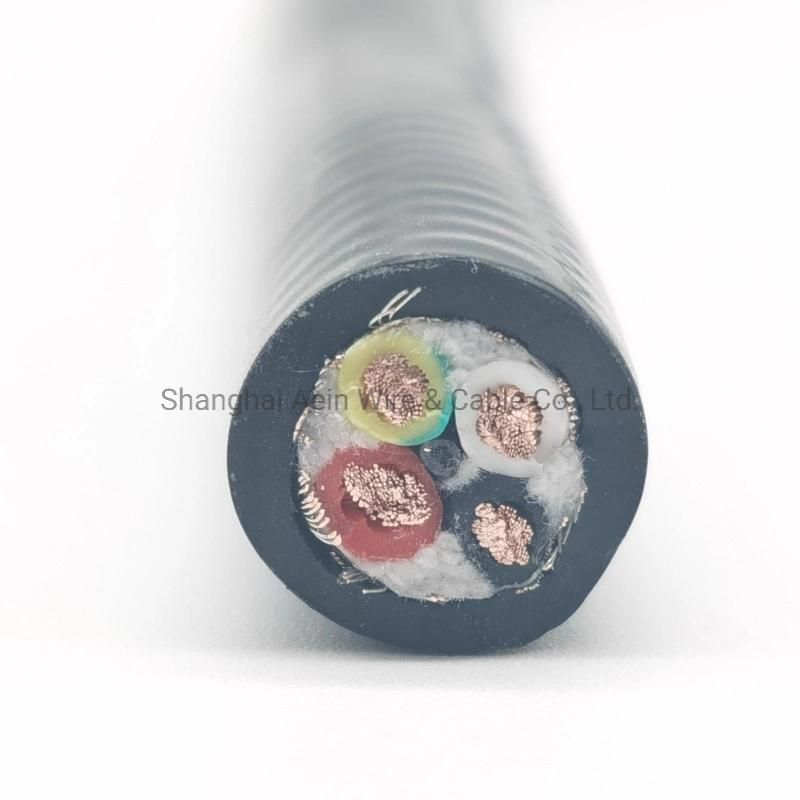

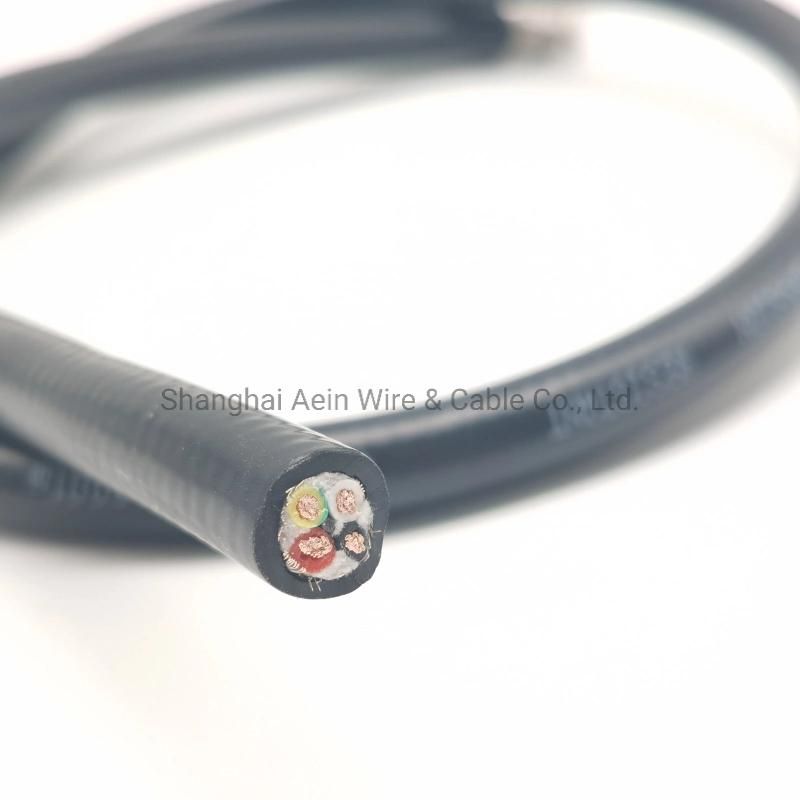

EMV-UV-2xslch-J Motor Connection Cable for Frequency Converters

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Special-Polyolefin
  • Insulation Material：XLPE
  • Material Shape：Round Wire

Base Info

  • Model NO.：EMV-UV-2XSLCH-J Cable
  • Range of Application：LSOH
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemEMV-UV-2XSLCH-J Motor Connection Cable For Frequency Converters ConductorCopper wire bare, finely strandedInsulationXLPEScreen 1Plastic-coated aluminium foil (St)Screen 2Braided screen of tinned copper wires, approx. coverage 85%Outer sheathSpecial-PolyolefinOperating Voltage600/1000 V Test Voltage4 kVTemperature RangeFlexible -15°C to +90°C
Fixed -40°C to +90°CColorOptional

Properties

Resistant to: UV radiation, weathering effects;
For outdoor us;
Halogen-free;
The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers;
Optimal screening enables interference-free operation of frequency converters
Low coupling resistance ensures good electromagnetic compatibility;
Low mutual capacitance of the individual cores due to XLPE core insulation and low screen capacity, enable low-loss power transmission.ApplicationThis motor connection cable for frequency converters ensures EMC in systems and buildings, facilities with devices and equipment from which electromagnetic interference fields can have an inadmissible influence on the environment. As a result of the permissible operating temperature of +90°C at the conductor, an enhanced current carrying capacity compared to PE insulated motor connection cables is permissible. Used as a connecting cable for medium mechanical stress with fixed installation and occasional free movement in dry, damp or wet rooms, as well as outdoors. Used in the automotive industry, food industry, environmental technology sector, packaging industry and in machine tools. Utilised as handling equipment for SIMOVERT drives in the industrial sector for pumps, fans, conveyor belts and air conditioning systems etc. EMC= Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and all-round large contact area of the copper braiding.
