THW/TW Electrical Wire AWG Size 14 12 10 8 6 4 2 House Buidling House Wire
YIFANG ELECTRIC GROUP INC.- Type：Insulated
- Conductor Type：Stranded,Solid
- Application：Heating, Underground, Hourse Wiring
- Conductor Material：Copper
- Insulation Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：THW,TW Wire
- Range of Application：Indoor or Outdoor Housing
- Certification：ISO9001, CE, UL, CCC
- Brand：Yifang
- Standards：BS 6500,BS7919,309 Y,Ts 9760, IEC 227, VDE 0281

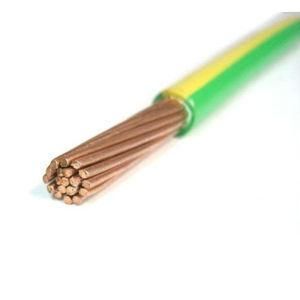

- Conductor：Solid or Stranded Copper
- Cores Number：1. 2.3

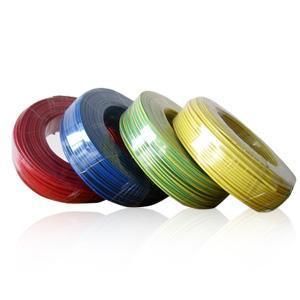

- Color：Red Balck Blue Green Yellow White Yellow,Green

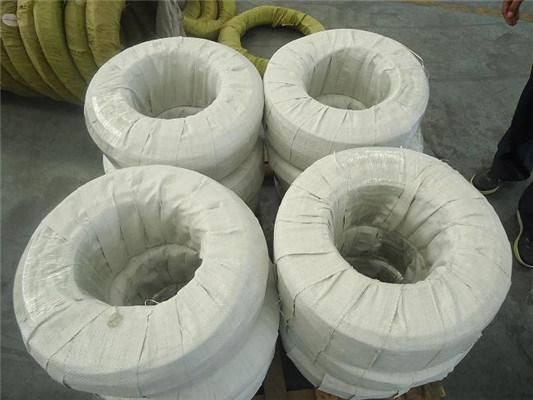

- Transport Package：Coil, Roll, Reel, Drum. 100m,Roll or More
- Specification：20AWG-1AWG
- Trademark：Yifang cable
- Origin：China
- HS Code：8544492100
- Production Capacity：60000km,Year
Description
Nominal section
(mm2)
N/Dia
(mm)
Max outer Dia(mm)
Reference Weight
(kg/km)
Conductor resistance at 20ºC≤(Ω/km)
copper
Aluminum
copper
Aluminum
1.5(class 1)
1/1.38
3.3
20.3
12.1
1.5(class2)
7/0.52
3.5
21.6
12.1
2.5(class 1)
1/1.78
3.9
31.6
17
7.41
11.80
2.5(class2)
7/0.68
4.2
34.8
7.41
4(class 1)
1/2.55
4.4
47.1
22
4.61
7.39
4(class2)
7/0.85
4.8
50.3
4.61
6(class 1)
1/2.76
4.8
50.3
29
3.08
4.91
6(class2)
7/1.04
5.4
71.2
3.08
3.08
10
7/1.35
7.0
119
62
1.83
1.91
16
7/1.70
8.0
179
78
1.15
1.20
25
7/2.04
10.0
281
118
0.727
0.868
35
7/2.52
11.5
381
156
0.524
0.641
50
19/1.78
13
521
215
0.387
0.443
