- Model NO.：Network Cable Utpcat5e
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS
- Model：Utpcat5e
- Brand：Hanli

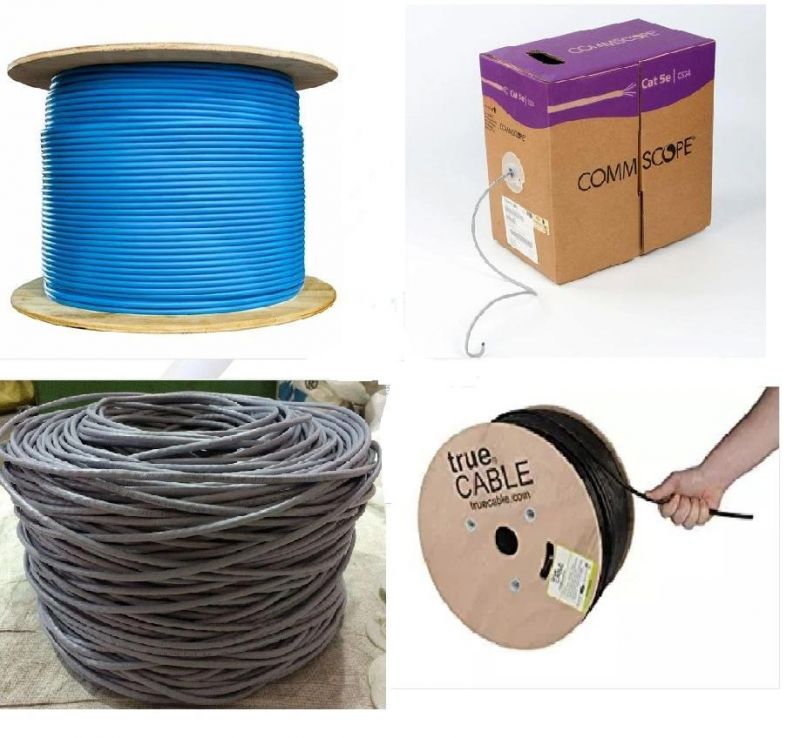

- Transport Package：305m,Roll
- Specification：0.45, 0.48, 0.5cu
- Trademark：hanli
- Origin：Zhejiang
- HS Code：8544491100
- Production Capacity：3000000m,Month
| UTP CAT 5E PVC |
| Product Name/Code : UTP Cat 5E PVC | Performance |
| Frequency | RL | Attenuation | NEXT | PSNEXT |
| Application | (MHz) | (dB) | (dB/100m) | | |
| 100 Base-T4 | | | min. | max | (dB) | |
| 100 Base-TX | | 0.722 | 22.60 | 1.82 | 67.00 | 64.00 |
| 100VG - AnyLAN | | 1.000 | 20.20 | 2.00 | 65.30 | 62.30 |
| 1000 Base-T (Gigabit Ethernet) | 4.000 | 23.00 | 4.10 | 56.30 | 53.30 |
| 155 Mbps ATM | | 8.000 | 24.50 | 5.80 | 51.80 | 48.80 |
| 622 Mbps AT | | 10.00 | 25.00 | 6.50 | 50.30 | 47.30 |
| Reference Standard | 16.00 | 25.00 | 8.20 | 47.30 | 44.30 |
| EIA/TIA 568B & ISO/IEC 11801 | 20.00 | 25.00 | 9.30 | 45.80 | 42.80 |
| Cable Construction | 25.00 | 24.30 | 10.4 | 44.30 | 41.30 |
| Conductor | Solid Bare Copper | 31.25 | 23.60 | 11.70 | 42.90 | 39.90 |
| AWG | 24 | 62.50 | 21.50 | 17.00 | 38.40 | 35.40 |
| Conductor Diameter(mm) | 0.5 | 100.00 | 20.10 | 22.00 | 35.30 | 32.30 |
| Insulation | Solid PE | Frequency | ELFEXT | PSELFEXT | | ACR |
| Average Thickness(mm) | 0.217 | (MHz) | | | |
| Insulation Diameter(mm) | 0.95 | | (dB) | (dB) | | (dB) |
| | | 0.722 | 66.00 | 63.00 | | 65.00 |
| Sheathing | PVC/FRPVC | 1.000 | 63.8 | 60.8 | | 63.30 |
| Thickness(mm) | 1.1 | 4.000 | 51.7 | 48.7 | | 52.20 |
| Diameter(mm) | 5.20 | 8.000 | 45.7 | 42.7 | | 46.00 |
| | | 10.00 | 43.8 | 40.8 | | 43.80 |
| Core Identification/Color Code | According to customer request | 16.00 | 39.7 | 36.7 | | 39.10 |
| Bending Radius | 6xOverall Diameter | 20.00 | 37.7 | 34.7 | | 36.50 |
| | | 25.00 | 35.8 | 32.8 | | 33.90 |
| | | 31.25 | 33.9 | 30.9 | | 31.20 |
| Fire Performance | 62.50 | 27.8 | 24.8 | | 21.40 |
Flame Propagation Test to IEC 60332-Part-1(PVC)
Flame Propagation Test to IEC 60332 Part 1 and Part 3
(FRPVC) | 100.00 | 23.8 | 20.8 | | 13.30 |
| Electrical Performance |
| Max.Conductor DC Resistance at 20 ºC(Ω/Km) | < 93.8 |
| Operating Temperature( ºC ) | 70 |
| Velocity of propagation | 68% |
| Impedance(ohm) | 100 ±15 |
| |
| | | |
