• Model NO.：YJV32
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC
• Model：Yjv32
• Brand：OEM
• Transport Package：in Drum
• Specification：1.5 2.5 4 6 10 16 25 35 50 70 95
• Trademark：OEM
• Origin：Henan
• HS Code：8544492100
• Production Capacity：10000 M Per Day

TypeDescriptionApplicationCu CoreAl CoreYJV
ZR-YJVYJLV
ZR-YJLVCu(Al)Core, XLPE Insulated, PVC Sheathed Power Cable
Cu(Al)Core, XLPE Insulated, PVC Sheathed flame- retardant Power CableCan be laid in indoor, outdoor, tunnels, cable channels, reinforced concrete pipelines and loose soil. Cable should not bear outer mechanic force, but can bear a certain tractional force.YJV22
ZR-YJV22YJLV22
ZR-YJLV22Cu(Al)Core, XLPE Insulated, Steel Tape Armored and PVC Sheathed Power Cable

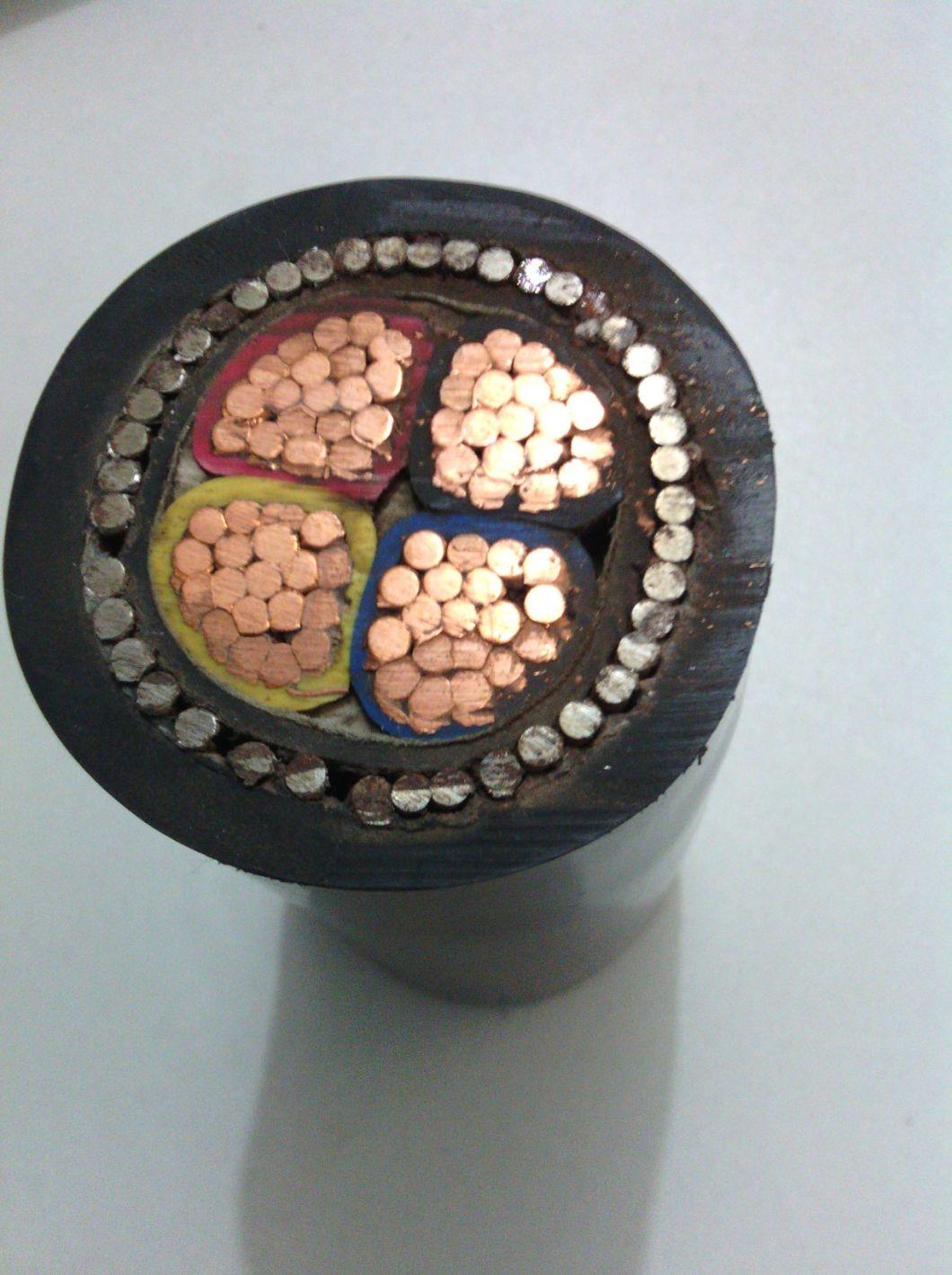

Cu(Al)Core, XLPE Insulated, Steel Tape Armored and PVC Sheathed flame- retardant Power CableLaid underground. Cable can bear outer mechanic force, but should not bear large tractional force.YJV32
ZR-YJV32YJLV32
ZR-YJLV32Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed Power Cable
Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed flame- retardant Power CableLaid in indoor, tunnels and mines. Cable can bear outer mechanic force and fairly large tractional force.YJV42
ZR-YJV42YJLV42
ZR-YJLV42Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed Power Cable
Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed flame- retardant Power CableCan be laid in vertical section, indoor, tunnels and mines. Cable can bear outer mechanic force and very large tractional force.1 conductor  2 insulation  3 tape  4 inner covering  5 armor 6 filler  7 over sheathed

Application conditions
1. The long-time permissible operation temperature of conductor shall not be higher than 90oC.
2. Conductor maximum short circuit (not more than 5 seconds) temperature shall not be higher than 250°C.
3. The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0°C.
If so, the cable should to be preheated.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.
5. Light weight, perfect bending properties, installed and maintained easily and conveniently.
Advantage:

a. Excellent electric and mechanical characteristics
b. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant
c. Simple in structure,Convenient to use
d. Reduce costs

Rated Voltage,Core Numbers & Nominal Cross-section Area:Uo/Um(kv)1st class0.6/11.8/33.6/6No. of Core2nd class1/13/36/61 coresection area(mm2)1.5-80025/80025-8002 coresection area(mm2)1.5-185//3 coresection area(mm2)1.5-40025-40025-4004 coresection area(mm2)2.5-40025-400/5 coresection area(mm2)2.5-40025-400/
