XLPE Cable Hta Cis 24kV (12/20KV) 1X25mm2 with Aluminum Conductor
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：HDPE
- Material Shape：Round Wire
Base Info
- Model NO.：Hta Cis Cable
- Wire Core Material：Al or Cu
- Certification：ISO, CCC, CE, RoHS, KEMA
- Model：Hta Cis Cable
- Brand：Yifang Cable
- Core：1core, 3core
- Sheath Colour：Black
- Standard：NFC 33226
- Metallic Screen：Longitude Aluminum Plastic Tape
- Transport Package：Drum
- Specification：25mm2-630mm2
- Trademark：Yifang
- Origin：Zhengzhou, Henan, China
- HS Code：8544601200
- Production Capacity：150km Per Month
Description
Basic Info.
Model NO. Hta Cis Cable Wire Core Material Al or Cu Certification ISO, CCC, CE, RoHS, KEMA Model Hta Cis Cable Brand Yifang Cable Core 1core, 3core Sheath Colour Black Standard NFC 33226 Metallic Screen Longitude Aluminum Plastic Tape Transport Package Drum Specification 25mm2-630mm2 Trademark Yifang Origin Zhengzhou, Henan, China HS Code 8544601200 Production Capacity 150km Per MonthProduct Description
XLPE Cable Hta Cis 24kV (12/20KV) 1X25mm2 with Aluminum Conductor1.Application:
Cable HTA CIS is used for public power distribution network 1~35KV.
2.Reference standard : NFC 33-226 IEC60502 and special requirements of clients

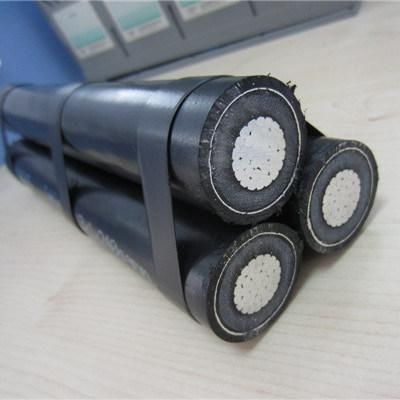

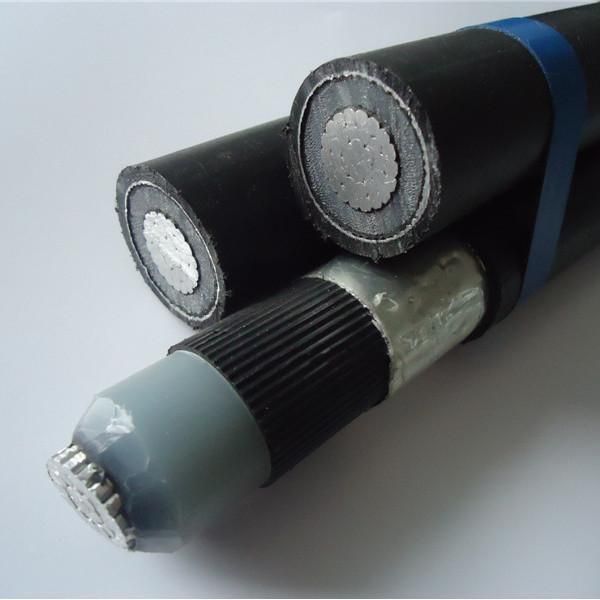

3.Cable structure :
3.1 Conductor material: Aluminium
3.2 Conductor Screen: Semi-conducting compound
3.3 Insulation: XLPE
3.4 Insulation screen: Strippable semi-conducting compound ,longitude with grooves and sealing power over it
3.5 Metallic screen layer: Longitude aluminum plastic tape
3.6 Outer sheath: PE
4.Packaging
Roll / Wooden drum / Iron-wooden drum
5.Export areas: African Countries
6. Certificate available : ISO ,CE , SGS, SONCAP , BV , COC ETC
