Cable NFC 33 209 Cu Copper Air Connection 2~4 Cores 6~16mm2
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：N,a
- Material Shape：Round Wire
Base Info
- Model NO.：JKYJ
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE
- Model：Jkyj
- Brand：Yifang
- Product Name：Cable NFC 33 209 Cu Copper Air Connection 2~4 Core
- Transport Package：Drum, Reel or According to Your Request
- Specification：IEC, BS, DIN, ASTM, NFC, JIS etc
- Trademark：YIFANG
- Origin：Zhengzhou, Henan, China
- HS Code：8544492100
- Production Capacity：50, 000km Per Month
Description
Basic Info.
Model NO. JKYJ Wire Core Material Bare Copper Wire Certification ISO, CCC, CE Model Jkyj Brand Yifang Product Name Cable NFC 33 209 Cu Copper Air Connection 2~4 Core Transport Package Drum, Reel or According to Your Request Specification IEC, BS, DIN, ASTM, NFC, JIS etc Trademark YIFANG Origin Zhengzhou, Henan, China HS Code 8544492100 Production Capacity 50, 000km Per MonthProduct Description

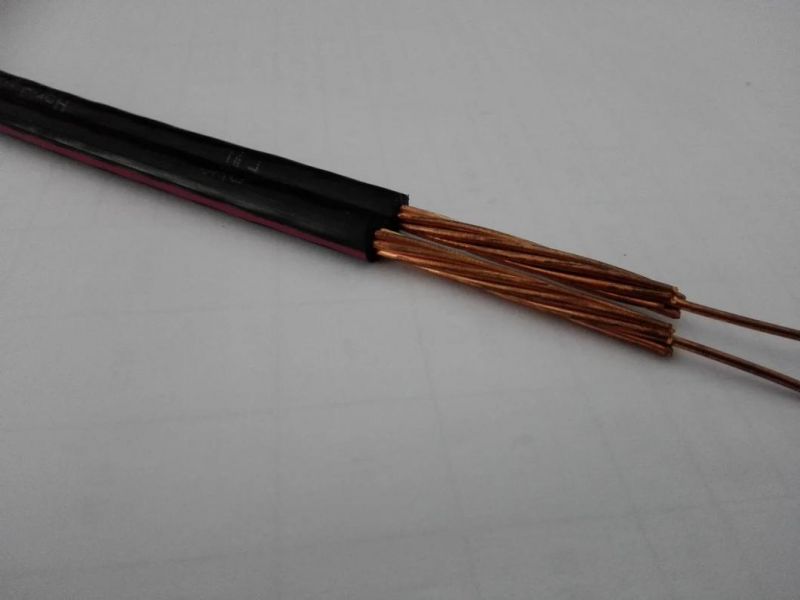

Product DetailsCable NFC33209 Cu Copper Air Connection 2x16
The Copper NF C 33-209 aerial conductor is intended to supply customers in rural and public areas.
CHARACTERISTICS
The torsade comprises an insulated copper core crosslinked polyethylene, it has a very good behavior over time and at high temperature.
INSTALLATION
The requirements of standard NF C 11-201 determine the installation criteria for low-voltage overhead lines.
Resistance to ultraviolet radiation;
Ozone resistance;
High dielectric strength;
Product Parameters
| Size | Outer Dia.(mm) | Tension(daN) | Standard Length(m) |
| 2x6 | 5.1x10.4 | 180 | 5000 |
| 2x10 | 6.2x12.6 | 300 | 3000 |
| 2x16 | 7.6x15.4 | 960 | 2000 |
| 4x6 | 12.0 | 180 | 2000 |
| 4x10 | 15.0 | 300 | 2000 |
| 4x16 | 18.4 | 960 | 1000 |
Product Details Show
