• Model NO.：ADSS-250M
• Core：2-288
• Certification：RoHS, UL, CE, ISO9001, VDE, CCC
• Brand：Efon
• Sheath Material：LSZH,PE Sheath,Flame Retardant Sheath,Anti-Rodent

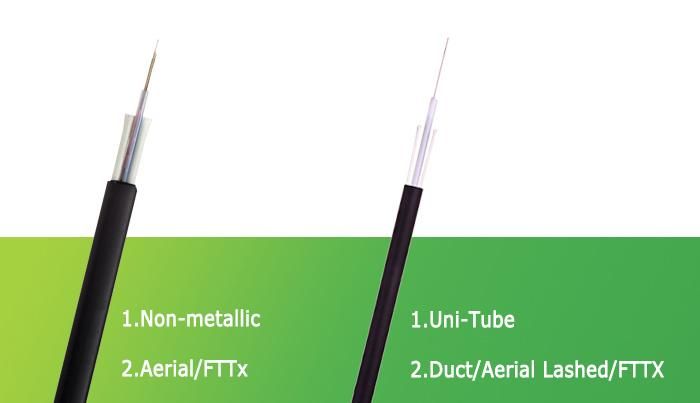

• Cable Structure：ADSS Optical Fiber Cable
• Applications：Aerial
• Fiber Options：Itu G652D ,G657A,Om1,Om2,Om3,Om4
• Fiber Count：2-288 Cores
• Installation Tensile：8000n
• Bend Radius (Under Installation)：20 X External Diameter of Cable
• Strength Member：Kevlar Yarn
• Material of Jacket：Black Polyethylene (PE)
• Certifications：ISO9001,Ce,RoHS
• Warranty (Year)：2

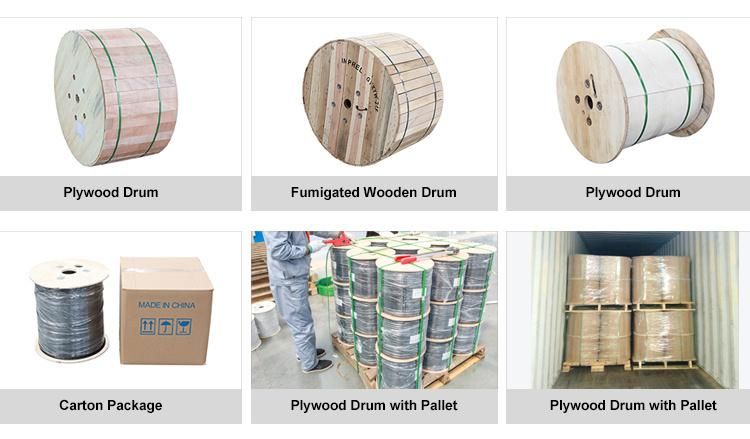

• Transport Package：Wooden Drum Iron-Wooden Drum with Fumigated or Not
• Specification：CE
• Trademark：OEM
• Origin：China
• HS Code：85447000
• Production Capacity：1000km,Week

Suitable Span
(NESC Standard,m)

PE Jacket

AT Jacket

A

B

C

D

12.5

125

136

1.5

4

10

4.6

7.6

1.8

160

100

140

100

13.0

132

142

2.25

6

15

7.6

8.3

1.5

230

150

200

150

13.3

137

148

3.0

8

20

10.35

9.45

1.3

300

200

290

200

13.6

145

156

3.6

10

24

13.8

10.8

1.2

370

250

350

250

13.8

147

159

4.5

12

30

14.3

11.8

1.0

420

280

400

280

14.5

164

177

5.4

15

36

18.4

13.6

0.9

480

320

460

320

14.9

171

185

6.75

18

45

22.0

16.4

0.6

570

380

550

380

15.1

179

193

7.95

22

53

26.4

18.0

0.3

670

460

650

460

15.5

190

204

9.0

26

60

32.2

19.1

0.1

750

530

750

510

Note: Only a part of ADSS cables are listed in the table. ADSS cables with other spans can be inquired from EFON directly.

          Specifications in the table are got on condition that there is no height difference and the installation sag is 1 %.

          Fiber count is 2 to 72. The identification of fibers complies with the national standard.        This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.

You May Like

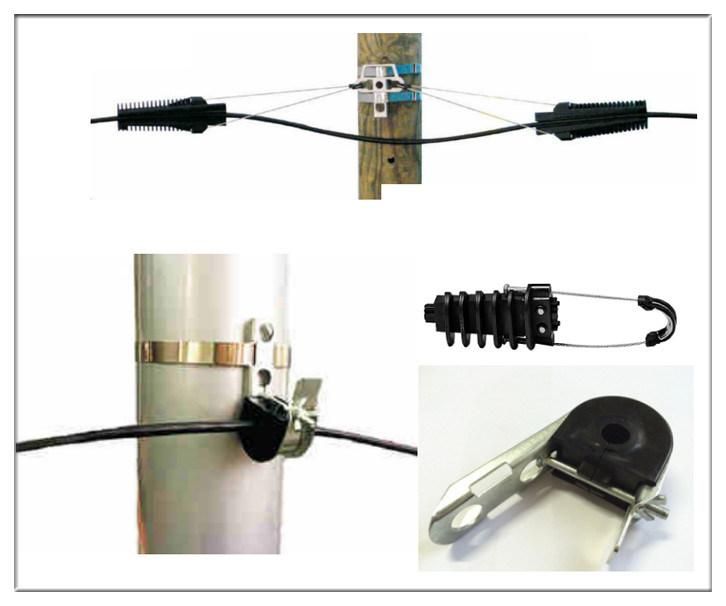

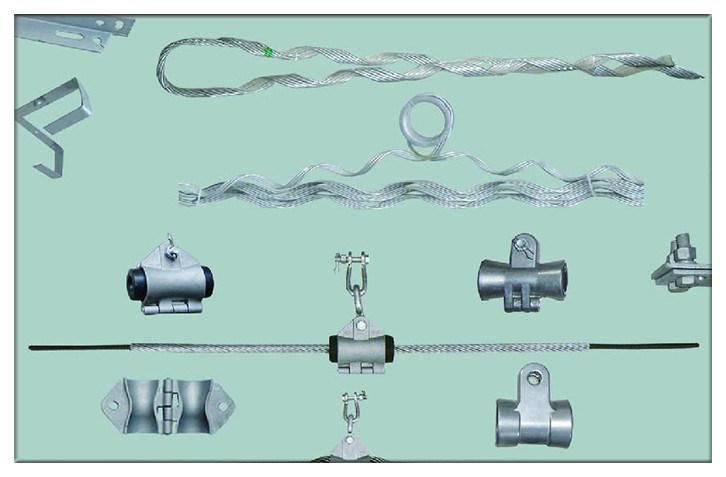

You May Need : Cable Fitting for ADSS Cable
