• Model NO.：Steel Tape Armoured XLPE Cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Model：YJV
• Brand：Jinshui
• Transport Package：Inner Packing: Wooden Drum, Iron Wooden Drum, Iron
• Specification：BS IEC ASTM DIN
• Trademark：Jinshui
• Origin：Zhengzhou Henan, China
• HS Code：8544601200
• Production Capacity：300000km Per Month

Basic Info.

Model NO. Steel Tape Armoured XLPE Cable Wire Core Material Bare Copper Wire Certification ISO, CCC, CE Model YJV Brand Jinshui Transport Package Inner Packing: Wooden Drum, Iron Wooden Drum, Iron Specification BS IEC ASTM DIN Trademark Jinshui Origin Zhengzhou Henan, China HS Code 8544601200 Production Capacity 300000km Per Month

Product Description

XLPE Insulation Cooper Aluminum Conductor Power Cable
1 Information:
A. Number of Cores:
1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5

B. Construction:
Stranded copper conductor for single and shaped conductors for multi-core cables, XLPE insulated, PVC bedding, zinc plating steel wire armored and PVC sheathed cables.

C. Nominal Section
Area(mm2): 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800

2 Standard:
IEC60502, BS6346, AS/NZS, UL, or as customer's request.

3 The Rated Voltage(kv):
0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35

4 Application:
These cables are most suitable for direct burial or for installation on trays or ducts, where there is a risk of mechanical damage, armoured cables should be used. The products can be produced according to our factory specification which is equivalent to the standard IEC60502.

5 Operating Characteristics:
Max. Permission conductor continous operating temperature of conductor 90 ° C
Max. Short-circuit temperature of conductor shall not exceed 250 ° C (5s maximum duration)
The ambient temperature under installation of cable should not below 0 ° C
The bending radius of a single-core cable should not less than 20 times of outer diameter of the cable

6 Instruction
I. Executive Standard: GB12706.1.3 adopts international electrician committee IEC60502
II. Working Features:
1. Environment temperature should be no lower than 0 for laying, the cable fall without limitation
2. The min bending radius of cable is stipulated as follows: Single core: 20(d+D) 5% three cores: 15(d+D) 5% (D is actual diameter of cable; D is actual outer diameter of conductor).
3. Operation temperature of cable PVC sheath is no more than 90.
4. Max rated temperature of cable conductor is 90, and no higher than 250 in time of short circuit (max. Lasting time is no longer than 5s).


======================================================
*Company Description*
======================================================
Zhengzhou Jinshui Industry & Commerce Co.Ltd is located in the national class Zhengzhou high and new technology industries zone in Zhengzhou ,Henan province. We have owned a number of exclusive essential manufacture technologies and has pass ISO 9001 Quality Management Systerm ,ISO 14001 Environmental Management Systerm ,OHSAS18001 occupational Heath Management Systerm ,ISO 10012 Measurement Management Systerm and others from China and abroad.

We have been engaged in producing electric cable and wire for nearly 20 years, and  we are also 12 year gold supplier. And we are confident that we can offer the best service and quality for you .

Our product range is as following:
 *Bare conductors(AAC, AAAC, ACSR, Galvanized steel wire)
 *Aerial Bounded Cable (Duplex, Triplex,Quadruplex)
 * PVC insulated wire (Rated voltage to 450/750V)
 *THHN/THWN wire
 *PVC insulated Power Cable
 *XLPE insulated Power Cable
 *Rubber sheathed Cable
 *Control Cable
 *Welding Cable
 *Cable Accessories

We take part in many fairs and exhibitions in China and abroad . Our aim is to be our customer's factory in Zhengzhou ,China .
We are here to help you placing orders of cost-effective electric cable and keep tracking your products and shipment.



===========================================================

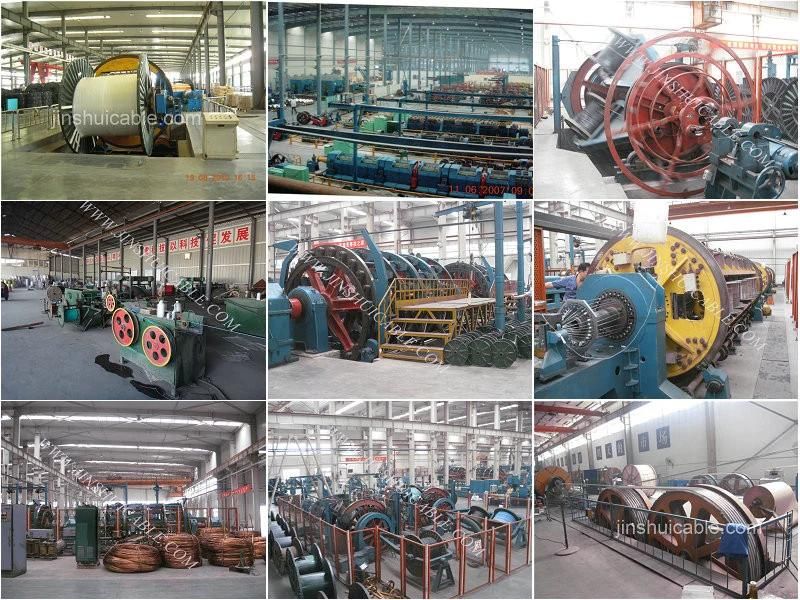

* Our Factory *
==========================================================
1,Professional production lines, experienced worker, ensure the production of every thing is fine and accurate.

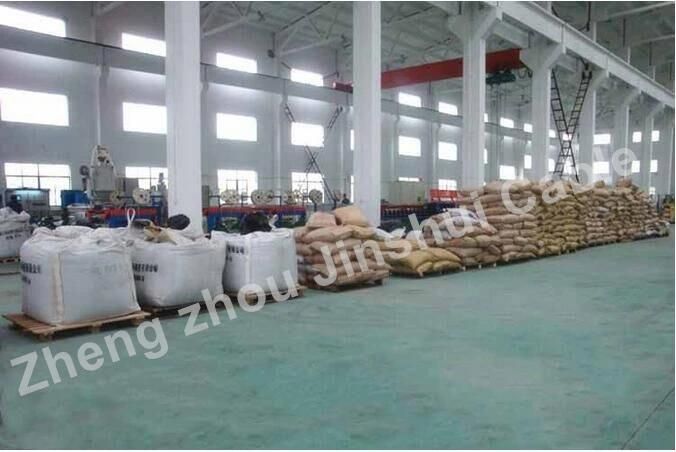

2,We choose excellent raw materials carefully to ensure the quality and meet the need of customers.

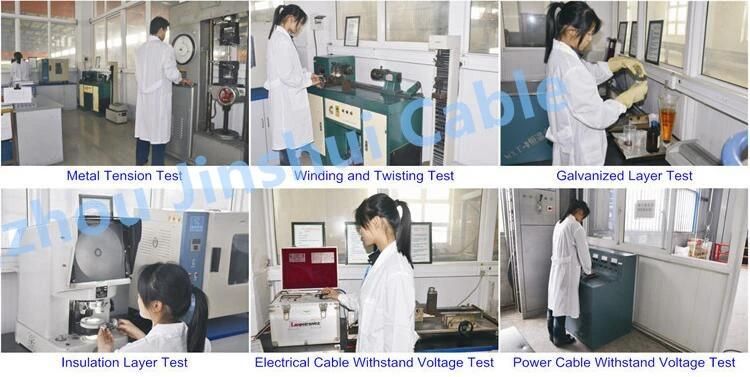

3,Mechanical testing of Cables is done to determine the quality and mechanical characteristics  before delivery.




======================================================
*FAQ*
======================================================
(1)Are  you the factory or trading company?
We are the manufacturer and 12 years gold supplier on alibaba.We are engaged in exporting cables for nearly 15 years.
 (2).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(3).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(4). What is the payment terms?
30% deposit by T/T,70% T/T after checking the copy of B/L. Or irrevocable L/C at sight .
(5).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.



Welcome your kind enquiry!
